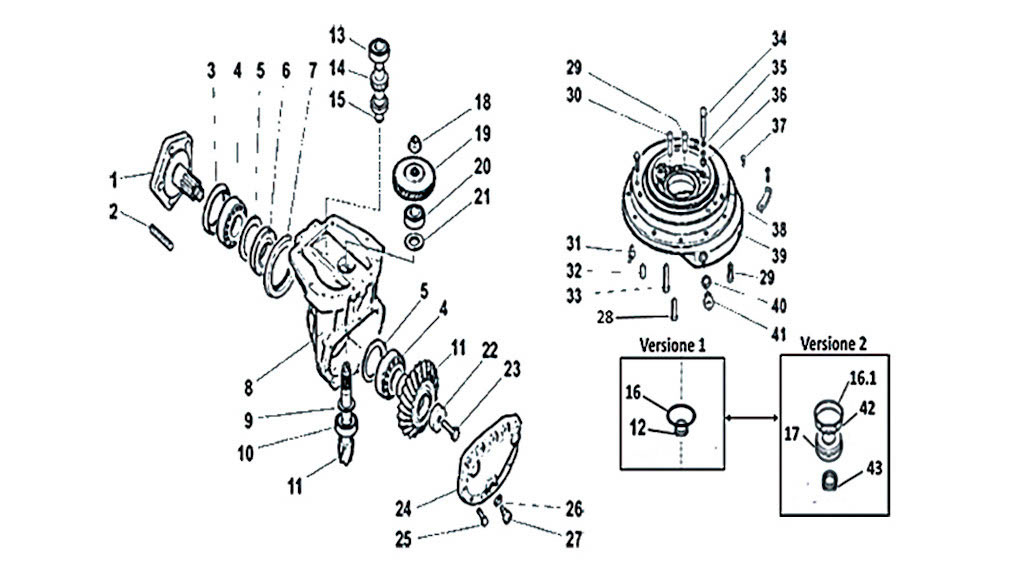

Reduction gears |
| B10 |
ZF - GK25LD
|
 |
Scarica il PDF
Download PDF |
Adattabili per: Cesab, Toyota, Hyster, Yale
| Cod. |
N. |
Descrizione |
Q.ta |
Foto |
| TA17386* |
1
|
Shaft
|
1 |
|
| TA25396* |
1
|
Shaft
|
1 |
|
| 9269* |
2
|
Stud Bolt
|
5 |
|
| 3996* |
2
|
Stud Bolt
|
5 |
|
| TA17620 |
3
|
Oil Seal
|
1 |
|
| TA17621 |
4
|
Bearing
|
2 |
|
| TA23558 |
5
|
Shim Kit
|
2 |
|
| PO489 |
6
|
Oil Seal
|
1 |
|
| PO284 |
7
|
Oil Seal
|
1 |
|
| TA25495 |
8
|
Box
|
1 |
|
| TA23559 |
9
|
Shim Kit
|
1 |
|
| TA17622 |
10
|
Bearing
|
1 |
|
| TA10432 |
11
|
Gear and Pinion
|
1 |
|
| TA25398 |
12
|
Oil Seal
|
1 |
|
| TA02619 |
13
|
Bearing
|
2 |
|
| 7502 |
14
|
Gear - 37 teeth
|
1 |
|
| TA17629 |
14
|
Gear - 23 teeth-14 notches
|
1 |
|
| TA17630 |
14
|
Gear - 23 Teeth-18 notches
|
1 |
|
| TA02615 |
14
|
Gear - 21 Teeth
|
1 |
|
| TA02618 |
15
|
Cup
|
1 |
|
| TA02616 |
16
|
Seeger
|
1 |
|
| TA25457 |
16.1
|
Seeger
|
1 |
|
| TA02614 |
17
|
Cover
|
1 |
|
| TA25432 |
18
|
Nut
|
1 |
|
| TA17626 |
19
|
Gear
|
1 |
|
| TA02621 |
19
|
Gear
|
1 |
|
| TA17623 |
20
|
Bearing
|
1 |
|
| TA23560 |
21
|
Shim Kit
|
1 |
|
| TA23557 |
22
|
Shim
|
1 |
|
| TA23556 |
23
|
Bolt
|
1 |
|
| TA25496 |
24
|
Cover
|
1 |
|
| TA25528 |
25
|
Bolt
|
15 |
|
| 8301 |
26
|
Gasket
|
1 |
|
| 9419 |
27
|
Cap
|
1 |
|
| TA25547 |
28
|
Bolt
|
2 |
|
| TA25536 |
29
|
Bolt
|
5 |
|
| TA25535 |
30
|
Bolt
|
2 |
|
| TA25544 |
31
|
Greaser
|
1 |
|
| TA25545 |
32
|
Plug
|
1 |
|
| TA25546 |
33
|
Screw
|
6 |
|
| TA25537 |
34
|
Bolt
|
2 |
|
| TA25548 |
35
|
Ring
|
4 |
|
| TA25549 |
36
|
Nut
|
2 |
|
| 2165 |
37
|
Breather
|
1 |
|
| 9908616 |
38
|
Ring
|
1 |
|
| TA25550 |
38
|
Ring
|
1 |
|
| TA25551 |
38
|
Ring
|
1 |
|
| 8539* |
39
|
Flange
|
1 |
|
| TA25558* |
39
|
Flange
|
1 |
|
| TA25559* |
39
|
Flange
|
1 |
|
| TA25560* |
39
|
Flange
|
1 |
|
| 8301 |
40
|
Gasket
|
1 |
|
| TA25556 |
41
|
Cap
|
1 |
|
| TA25557 |
41
|
Cap
|
1 |
|
| TA25458 |
42
|
OR
|
1 |
|
| TA25459 |
43
|
Oil Seal
|
1 |
|
| * |
|
Note - Supply only with serial nummer
|
|
|
