| Reduction gears | |

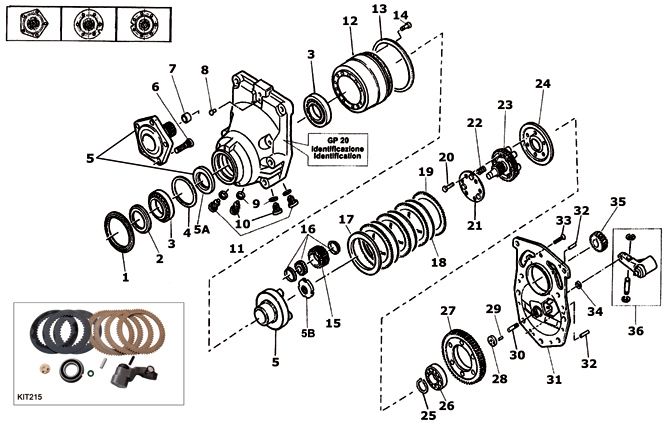

| B10 | ZF - GP20 |
| Cod. | N. | Descrizione | Q.ta | Foto |
| kit215 | Repai kit - Positions ( 18-19+26+28+30+34+36) | 1 |
 |
|
| PO284 | 1 | Oil Seal - 100X120X5,5 | 1 |
 |
| 6262 | 1 | Oil Seal - 95X115X5,5 | 1 | |
| GO197 | 2 | Nilos | 1 |
 |
| 6269 | 3 | Bearing | 2 |
 |
| 3000 | 4 | Shim | 1 | |
| 2505 | 5 | Shaft Assy - Pentagonal 5 Holes | 1 |
 |
| 7505 | 5 | Shaft Assy - Round 6 holes | 1 | |
| 6505 | 5 | Shaft Assy - Round 7 holes | 1 |
 |
| PO364 | 5A | Oil Seal | 1 |
 |
| 5864 | 5B | Ring Nut | 1 |
 |
| 9269 | 6 | Stud Bolt - M 14X1,5 | 5-6-7 |
 |
| 7353 | 7 | Bearing | 1 |
 |
| 3165 | 8 | Breather | 1 | |
| 8301 | 9 | Gasket | 4 | |
| 2013 | 10 | Cap | 2 | |
| 9419 | 11 | Cap | 2 | |
| 1100 | 12 | Gear | 1 |
 |
| 5900 | 13 | Shim Ring | 1 | |
| 3453 | 14 | Screw | 10 | |
| 4353 | 15 | Gear - 25 Teeth | 3 |
 |
| 5353 | 16 | Inside Bearing - 20mm | 3 | |
| 7253 | 17 | Spacer - H=4,8mm | 1 | |
| 8253 | 17 | Spacer - H=5,3mm | 1 |
 |
| 9253 | 17 | Spacer - H=5,8mm | 1 |
 |
| 7300 | 18 | Steel Disc - H=1,8mm | 3 | |
| 3600 | 19 | Sintered disc - H=1,8mm | 4 |
 |
| 6569 | 20 | Screw | 6 | |
| 1354 | 21 | Spring Support - 52X89,5 (6 Holes) | 1 | |
| 1200 | 22 | Spring | 3 |
 |
| 2353 | 23 | Gear | 1 |
 |
| 0400 | 24 | Plate - H=6mm | 1 |
 |
| 1353 | 24 | Plate - H=8mm | 1 |
 |
| 4201 | 25 | Seeger | 1 | |
| 2182 | 26 | Bearing | 1 |
 |
| 5602 | 27 | Ring Gear - 86 Teeth | 1 | |
| 2399 | 27 | Ring Gear - 88 Teeth | 1 |
 |
| 2502 | 27 | Ring Gear - 90 Teeth | 1 | |
| 2054 | 27 | Ring Gear - 92 Teeth | 1 | |
| 8502 | 27 | Ring Gear - 102 Teeth | 1 | |
| 0592 | 28 | Pad | 1 |
 |
| 0353 | 29 | Plug | 1 | |
| 6209 | 30 | Pin - L=34,6mm | 1 |
 |
| 4009 | 30 | Pins Kit - (10pcs) | 1 |
 |
| * | 31 | Cover | 1 | |
| 2122 | 32 | Pin | 2 |
 |
| 1369 | 33 | Screw | 8 | |
| GO106 | 34 | Gasket | 1 |
 |
| 3303 | 35 | Pinion - 23 Teeth | 1 | |
| 6869 | 35 | Pinion - 25 Teeth | 1 |
 |
| 5869 | 35 | Pinion - 27 Teeth | 1 | |
| 2152 | 35 | Pinion - 29 Teeth | 1 |
 |
| 7502 | 35 | Pinion - 37 Teeth | 1 | |
| CF293 | 36 | Brakr cylinder - ุ 19,4 (3/4") | 1 |
 |
| * | Note - Supply only with the serial number |
